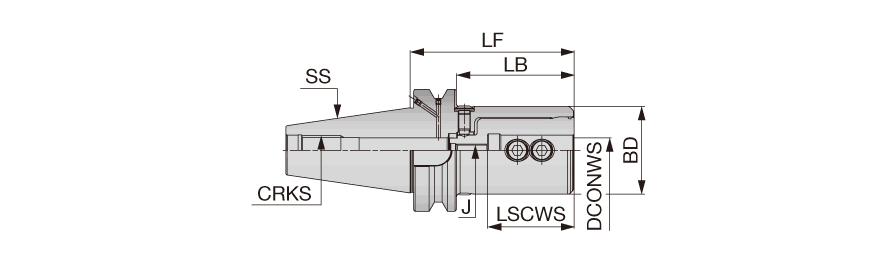

TUNGBORE-BT40EM16ADB
| Shank Size (SS) | 40 | Connection Diameter Workpiece Side (DCONWS) | 16 mm |
| Body Length (LB) | 96.5 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Diameter (BD) | 72 mm | Tool Type | BT |
| Connection Size Work Piece Side (DCONWS) | #2 | Overall Length (OAL) | 123.5 mm |
| Connection Diameter Machine Side (DCONMS) | CAT50 | Measurement Type | Metric |
| Application | | Tapered shape interface | | Body Material | Steel |
Product Features
| Family Description | Adjustable drilling diameter holder (BT) | Country of Origin | Israel |
| Remarks | The items that include "ADB" in the description are coolant through spindle & flange type. Applicable for 10 MPa coolant |
