ADJ ST1-1/4 D2.756
| Shank Size (SS) | 1.25″ | Connection Diameter Machine Side (DCONMS) | CAT50 |
| Protruding Length (LPR) | 0.787″ | Application | CAT50 |
| Body Length (LB) | 0.995″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Diameter (BD) | 0.559″ | Tool Type | Square Shank Turning Tools |
| Connection Size Work Piece Side (DCONWS) | #2 | Coolant Supply Property (CSP) | Through Hole |
| Shank Standard | ST | Measurement Type | Inch |
Product Features
| Family Description | Center alignment shank and base with cylindrical shanks with a clamping flat. Used for specially tailored toolholders. | Country of Origin | IL |

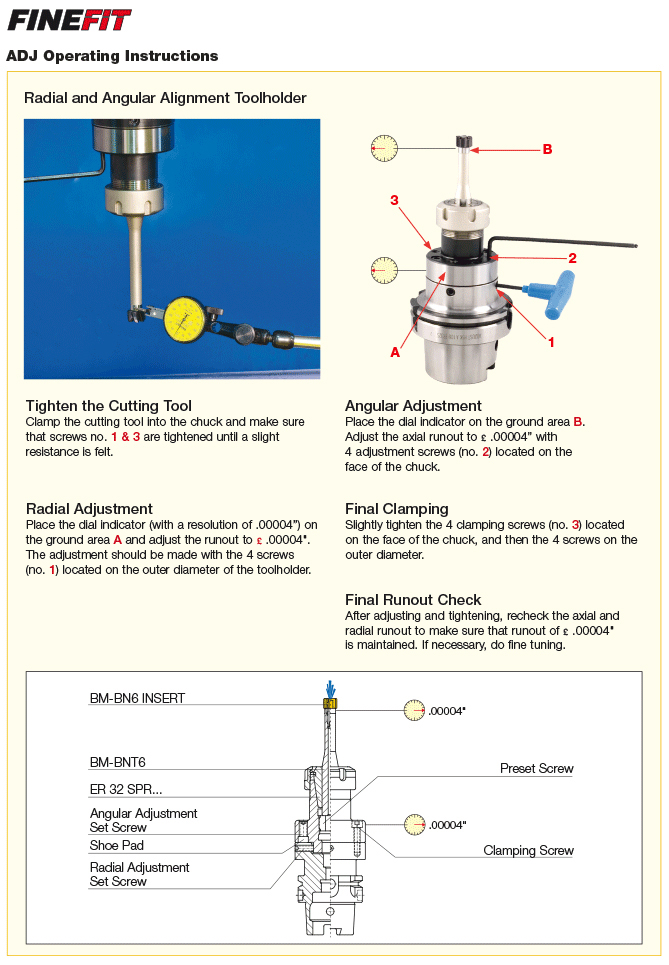

| Remarks | (1) Use 4 mm hex key for screw adjustment. |
Shipping Info
Package Weight
.0001
