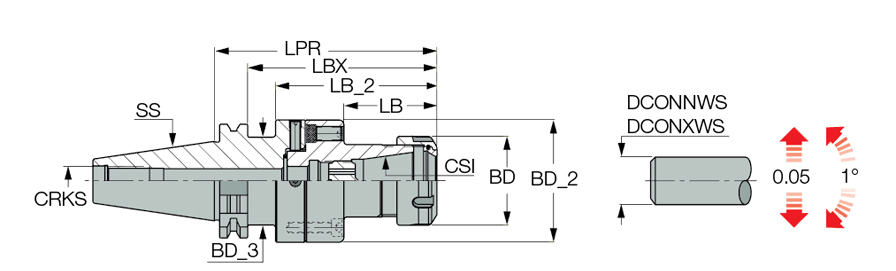

ADJ DIN69871 50 D70 ER32
| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Protruding Length (LPR) | 124.5 mm | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 52.5 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Body Diameter (BD) | 50 mm | Tool Type | DIN 69871 |
| Connection Size Work Piece Side (DCONWS) | #2 | Coolant Supply Property (CSP) | Through Hole |
| Shank Standard | DIN69871 | Measurement Type | Metric |
| Work Piece Shank Diameter | ER32 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Application | | Center Alignment Devices | Collet Chucks | DIN 69871 (ISO7388 1) | |
Product Features

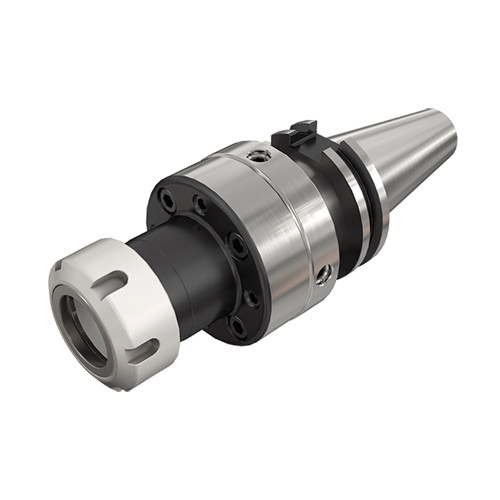

| Family Description | FINEFIT, center alignment DIN 6499 ER collet chucks with DIN 69871 form AD/B taper shanks. | Country of Origin | Israel |
| Remarks | Radial adjustment 0.05 mm Angular adjustment 1° |
Shipping Info
Package Weight
9.665
