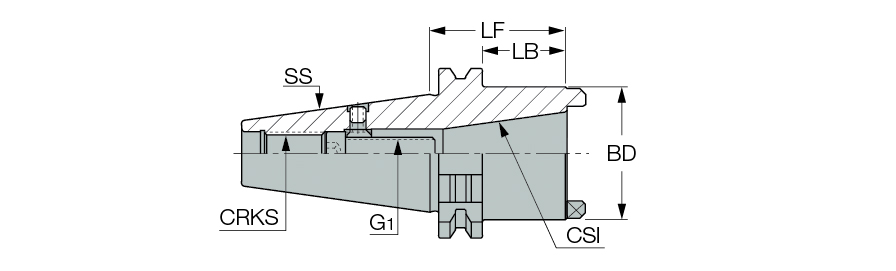

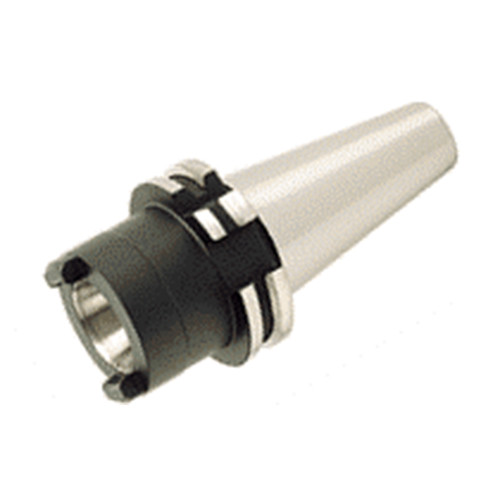

DIN69871 50 AD BT/SK 40
| Shank Size (SS) | 50 | Application | | DIN 69871 (ISO7388 1) | Taper Adapters | |
| Protruding Length (LPR) | 70 mm | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 50.9 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Body Diameter (BD) | 66 mm | Tool Type | DIN 69871 |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Metric |
| Shank Standard | DIN69871 | Body Material | Steel |
| Work Piece Shank Diameter | BT/SK 40 | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | DIN 2080, DIN 69871/A and BT MAS-403 adapters with DIN 69871 form A taper shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
8.020
