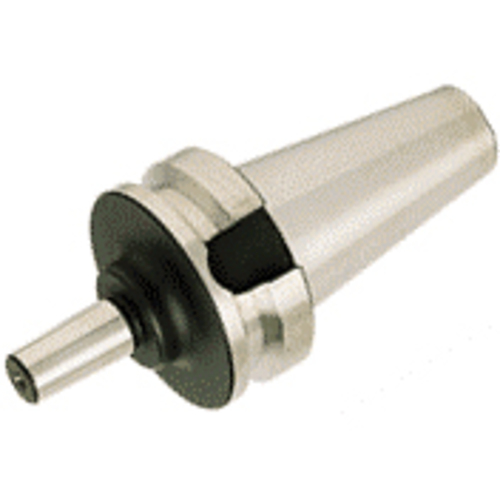

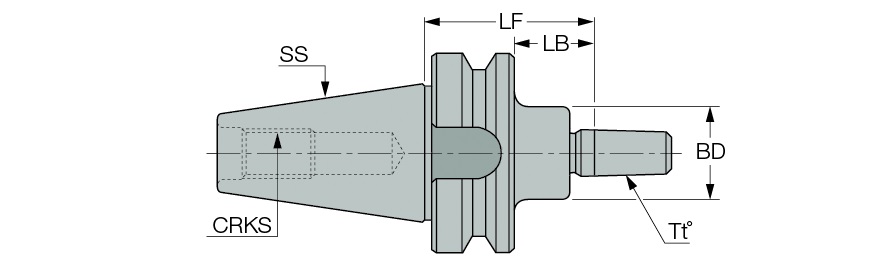

BT40 DC B16X 45
| Shank Size (SS) | 40 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Protruding Length (LPR) | 45 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Length (LB) | 18 mm | Tool Type | BT |
| Body Diameter (BD) | 30 mm | Measurement Type | Metric |
| Connection Size Work Piece Side (DCONWS) | #2 | Body Material | Steel |
| Shank Standard | BT | Connection Code Machine Side (CCMS) | BT |
| Application | | BT | Drill Chuck Arbor | |
Product Features
| Family Description | DIN 238 drill chuck arbors with BT MAS-403 A tapered shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
2.542
