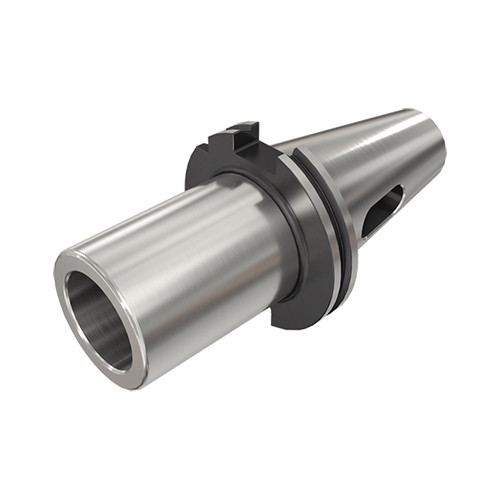

DIN69871 50 MT5X105

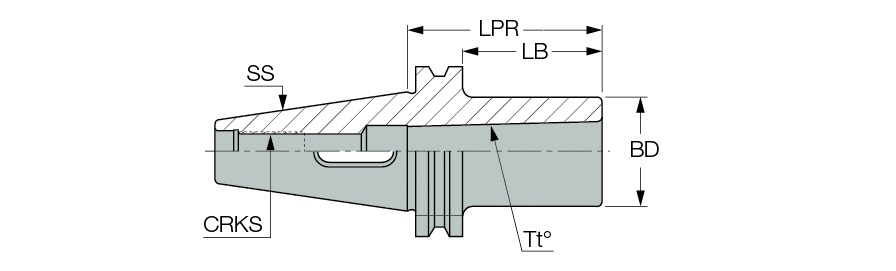

| Shank Size (SS) | 50 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Protruding Length (LPR) | 105 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Body Length (LB) | 85.9 mm | Tool Type | DIN 69871 |
| Body Diameter (BD) | 63 mm | Measurement Type | Metric |
| Connection Size Work Piece Side (DCONWS) | #2 | Body Material | Steel |
| Shank Standard | DIN69871 | Connection Code Machine Side (CCMS) | DIN69871 |
| Application | | DIN 69871 (ISO7388 1) | Taper Adapters | |
Product Features
| Family Description | DIN 6383 Morse taper adapters with DIN 228-2 form D tang and DIN 69871 form A taper shanks. | Country of Origin | India |
Shipping Info
Package Weight
7.405
