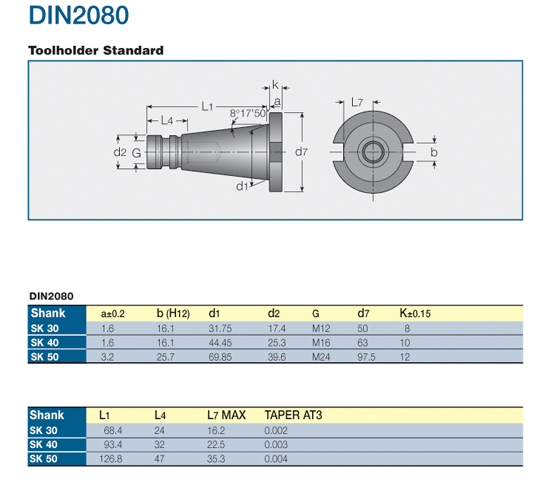

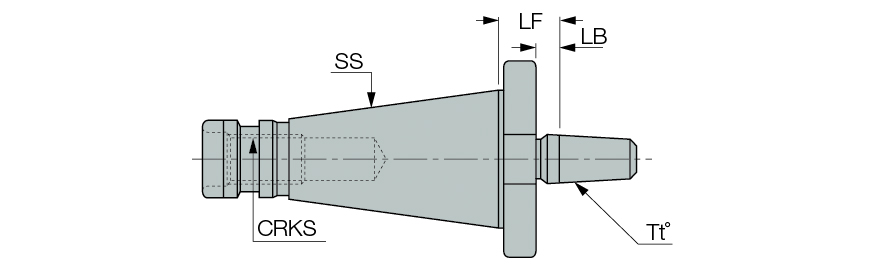

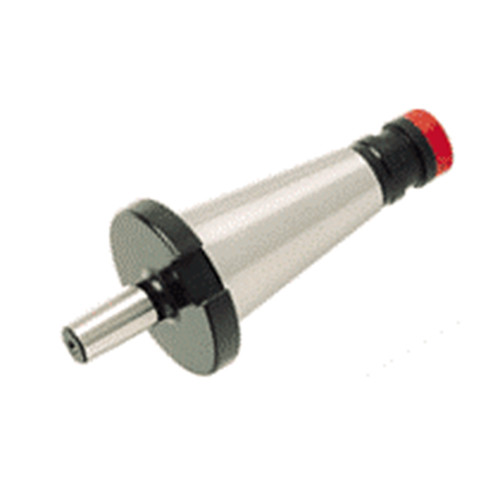

DIN2080 40 DC B16X 22
| Shank Size (SS) | 40 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Protruding Length (LPR) | 22 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Length (LB) | 10.4 mm | Tool Type | DIN 2080 |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Metric |
| Shank Standard | DIN2080 | Body Material | Steel |
| Application | | DIN 2080 | Drill Chuck Arbor | |
Product Features
| Family Description | DIN238 drill chuck arbors with DIN2080 A tapered shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
1.962
