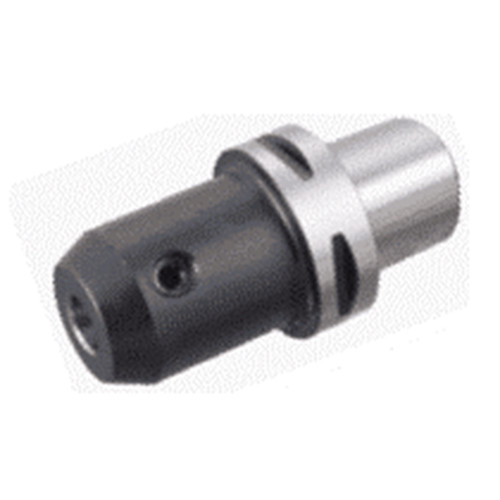

C6 EM25X90 E

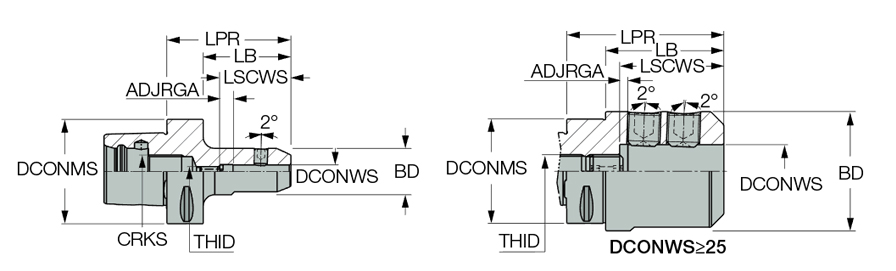

| Shank Size (SS) | 63 | Application | CAT50 |
| Protruding Length (LPR) | 90 mm | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 68 mm | Connection Retention Knob Thread Size (CRKS) | M20 |
| Body Diameter (BD) | 65 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
Product Features
| Family Description | DIN1835 form E (whistle notch) drill holders with CAMFIX (ISO 26623-1) exchangeable tapered shanks. | Country of Origin | Israel |
| Remarks | The adjustment screw has an internal coolant hole. |
Shipping Info
Package Weight
5.009
