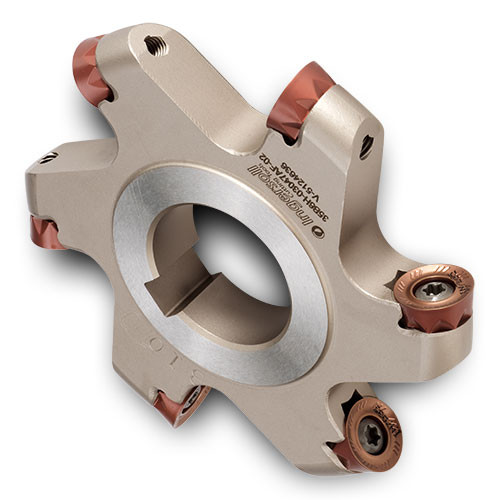

35B6H-03047AF-01
| Cutting Diameter (DC) | 3-1/2″ | Cutting Length Min. | 0.197″ |
| Cutting Width (CW) | 0.472″ | Cutting Length Max. | 0.217″ |
| Cutting Depth Maximum (CDX) | 0.94″ | Measurement Type | Inch |
| Flute Count (NOF) | 8 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 Teeth | Cutting Item Count (CICT) | 8 |
| Connection Diameter Machine Side (DCONMS) | 1″ | Master Insert Identification (MIID) | LNET 083004-TN-N |
| Coolant Supply Property (CSP) | Through Hole | Drive Size (DRVS) | 1/4″ |
| Application | | Slotting | | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | Insert anti-rotation Reliable performance, strength & economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.001
