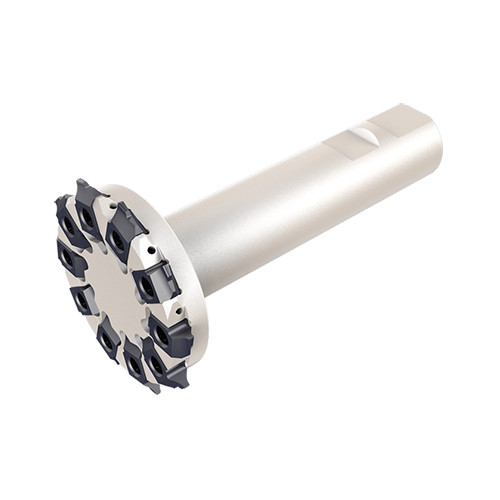

ETS D63-M1-1.75-W25-C

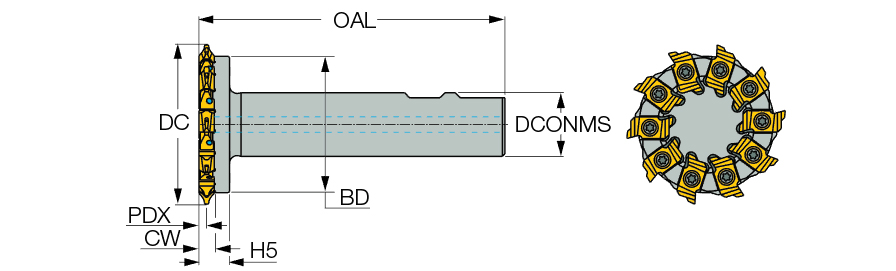

| Cutting Diameter (DC) | 63 mm | Cutting Length Max. | 0.217″ |
| Cutting Width (CW) | 6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Body Material | Steel |
| Overall Length (OAL) | 120 mm | Cutting Item Count (CICT) | 10 |
| Coolant Supply Property (CSP) | Through Hole | Functional Length (LF) | 88 mm |
| Application | | Gear tooth profile | | Master Insert Identification (MIID) | LNET 18 |
| Cutting Length Min. | 0.197″ | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Tools for milling gear profile carrying tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | Other cutter diameters with alternative connection options (shank or arbor-type) can be provided on request |
Shipping Info
Package Weight
1.442
