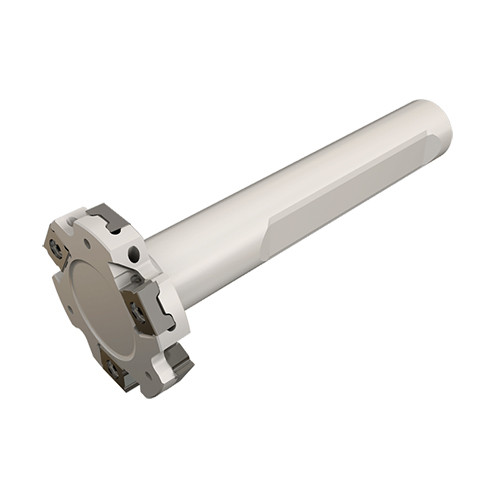

ETS D1.50-.250-W.625-LN08

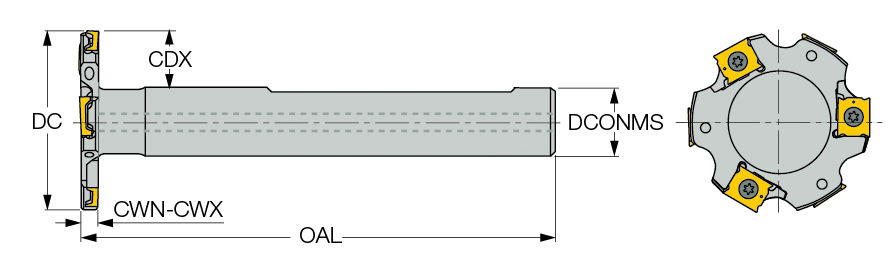

| Cutting Diameter (DC) | 1-1/2″ | Cutting Length Min. | 1/4″ |
| Cutting Depth Maximum (CDX) | 0.437″ | Cutting Length Max. | 0.269″ |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Body Material | Steel |
| Overall Length (OAL) | 4″ | Cutting Item Count (CICT) | 6 |
| Shank Type | Weldon | Functional Length (LF) | 3.047″ |
| Coolant Supply Property (CSP) | Through Hole | Master Insert Identification (MIID) | LNET 083504-TN-N |
| Application | | Side Slotting | Slitting | T Slotting | | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | MINI-TANGSLOT, Grooving and slitting cutters, carrying tangentially clamped inserts with 4 cutting edges. | Country of Origin | Israel |
| Remarks | Adjustable overhang design |
Shipping Info
Package Weight
0.881
