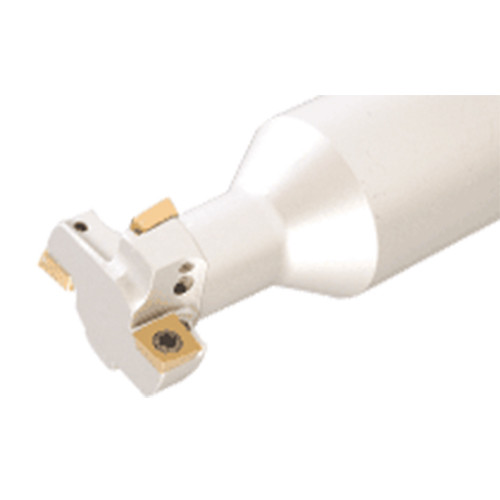

ETS D146-062W1.25-10

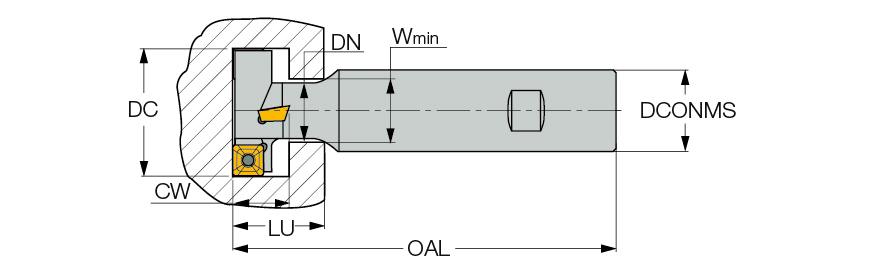

| Cutting Diameter (DC) | 1.453″ | Cutting Length Min. | 0.197″ |
| Cutting Width (CW) | 0.618″ | Cutting Length | 0.618″ |
| Cutting Width Minimum (CWN) | 0.812″ | Cutting Length Max. | 0.217″ |
| Cutting Depth Maximum (CDX) | 0.345″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Item Count (CICT) | 4 |
| Overall Length (OAL) | 5″ | Functional Length (LF) | 3.859″ |
| Usable Length (LU) | 1.88″ | Master Insert Identification (MIID) | XPMT 100408-HQ |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Coolant Supply Property (CSP) | Through Hole | Neck Diameter (DN) | 0.76″ |
| Application | | Bottom Shouldering | Side Slotting | T Slotting | |
Product Features
| Family Description | T-slot endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
1.236
