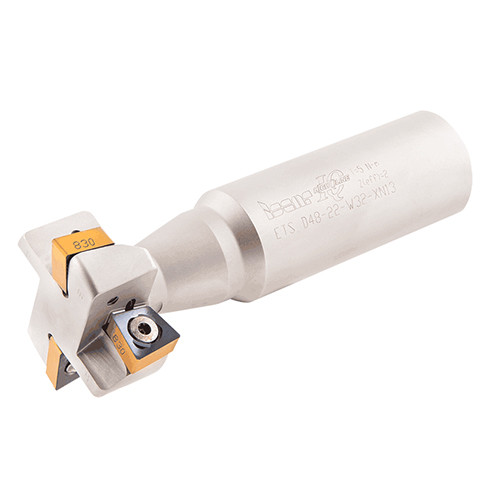

ETS D1.46-0.62-W1.25-XN13

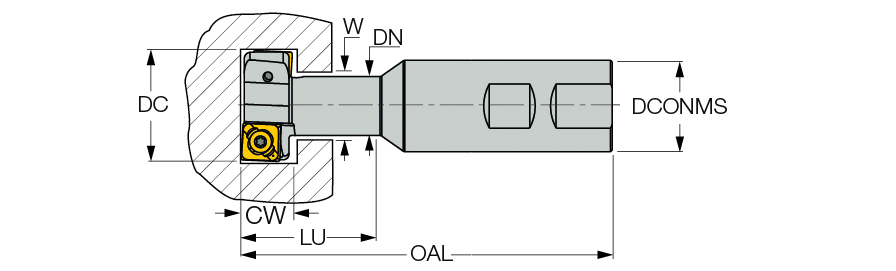

| Cutting Diameter (DC) | 1.45″ | Cutting Length Min. | 0.197″ |
| Cutting Width (CW) | 0.615″ | Cutting Length | 0.615″ |
| Cutting Width Minimum (CWN) | 0.812″ | Cutting Length Max. | 0.217″ |
| Cutting Depth Maximum (CDX) | 0.314″ | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 1 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Item Count (CICT) | 2 |
| Overall Length (OAL) | 4-1/2″ | Functional Length (LF) | 3.359″ |
| Usable Length (LU) | 1.695″ | Master Insert Identification (MIID) | XNMU 130608PNTN |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Coolant Supply Property (CSP) | Through Hole | Neck Diameter (DN) | 0.772″ |
| Application | | Bottom Shouldering | Side Slotting | T Slotting | |
Product Features
| Family Description | T-slot endmills carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
1.323
