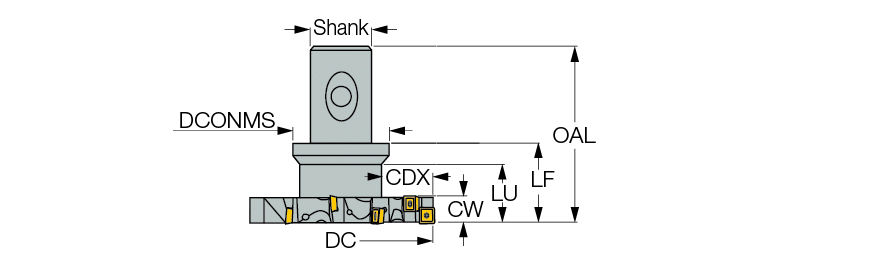

FDN D050-08-CF4-06
| Cutting Diameter (DC) | 50 mm | Cutting Length Min. | 0.197″ |
| Cutting Width (CW) | 8 mm | Cutting Length | 8 mm |
| Cutting Depth Maximum (CDX) | 13.9 mm | Cutting Length Max. | 0.217″ |
| Flute Count (NOF) | 8 | Measurement Type | Metric |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 44 mm | Body Material | Steel |
| Overall Length (OAL) | 90 mm | Cutting Item Count (CICT) | 8 |
| Usable Length (LU) | 32 mm | Functional Length (LF) | 48 mm |
| Shank Type | CLICKFIT | Master Insert Identification (MIID) | XOMT 060204-HQ |
| Coolant Supply Property (CSP) | Through Hole | Connection Code Machine Side (CCMS) | CLICKFIT |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
Product Features

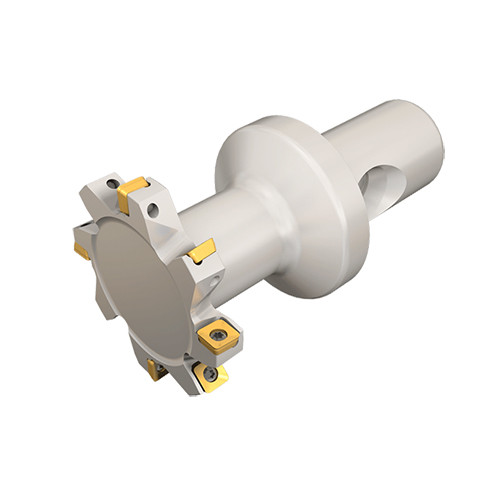

| Family Description | HELIQUAD, Full slot flange-type slotting cutters with CLICKFIT adaptation. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.206
