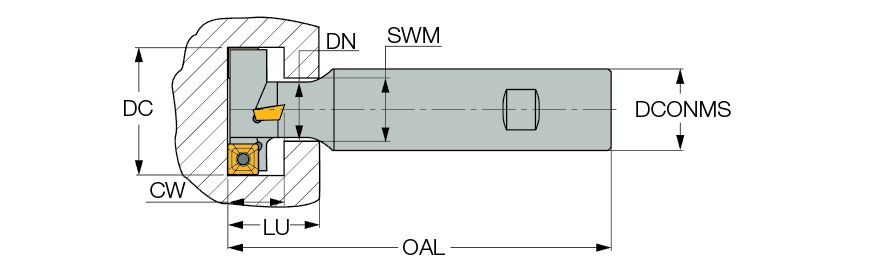

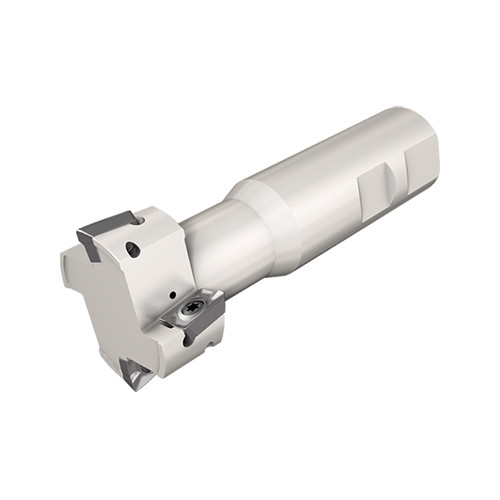

ETS D32-16-W32-A10
| Cutting Diameter (DC) | 31.7 mm | Cutting Length Min. | 0.197″ |
| Cutting Width (CW) | 15.85 mm | Cutting Length | 15.85 mm |
| Cutting Width Minimum (CWN) | 18 mm | Cutting Length Max. | 0.217″ |
| Cutting Depth Maximum (CDX) | 6.8 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Item Count (CICT) | 4 |
| Overall Length (OAL) | 110 mm | Functional Length (LF) | 74 mm |
| Usable Length (LU) | 39 mm | Master Insert Identification (MIID) | APKT 1003PDTR/L-RM |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Coolant Supply Property (CSP) | Through Hole | Neck Diameter (DN) | 16.8 mm |
| Application | | Bottom Shouldering | Side Slotting | T Slotting | |
Product Features
| Family Description | T-slot endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
1.235
