ETS D050-06-W20-LN08

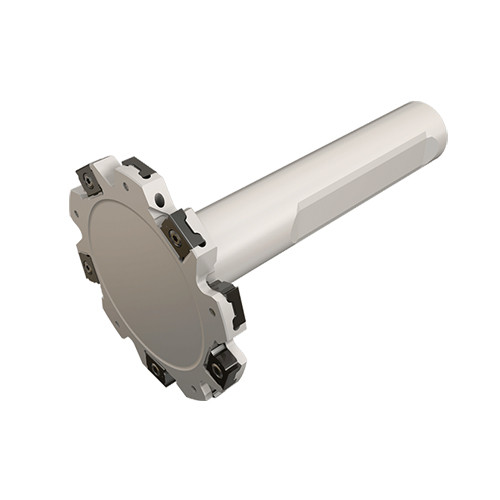

MINI-TANGSLOT, Grooving and slitting cutters, carrying tangentially clamped inserts with 4 cutting edges.

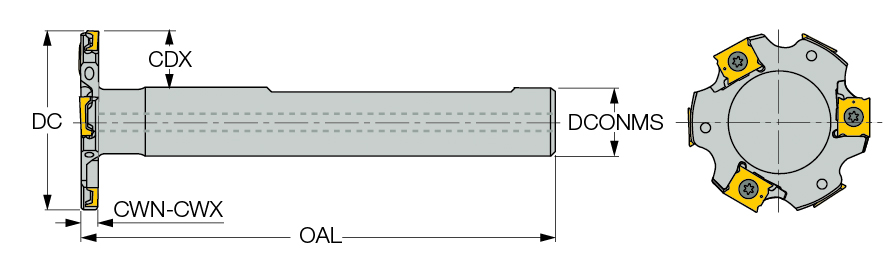

| Cutting Diameter (DC) | 50 mm | Cutting Length Max. | 6.5 mm |
| Flute Count (NOF) | 8 | Measurement Type | Metric |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Material | Steel |
| Overall Length (OAL) | 110 mm | Cutting Item Count (CICT) | 8 |
| Shank Type | Weldon | Functional Length (LF) | 85 mm |

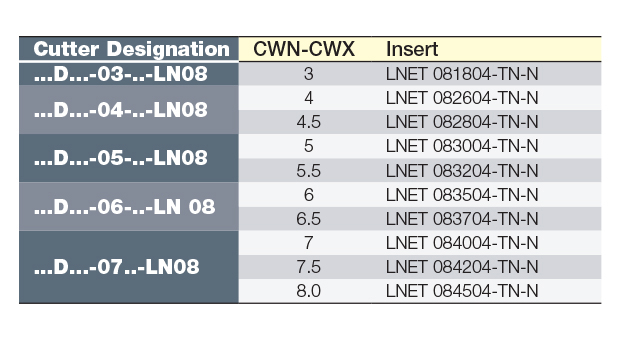

| Coolant Supply Property (CSP) | Through Hole | Master Insert Identification (MIID) | LNET 083504-TN-N |
| Application | | Side Slotting | Slitting | T Slotting | | Connection Code Machine Side (CCMS) | Weldon |
| Cutting Length Min. | 6 mm |
Product Features
| Family Description | MINI-TANGSLOT, Grooving and slitting cutters, carrying tangentially clamped inserts with 4 cutting edges. | Country of Origin | Israel |
| Remarks | Adjustable overhang design |
Shipping Info
Package Weight
0.840
