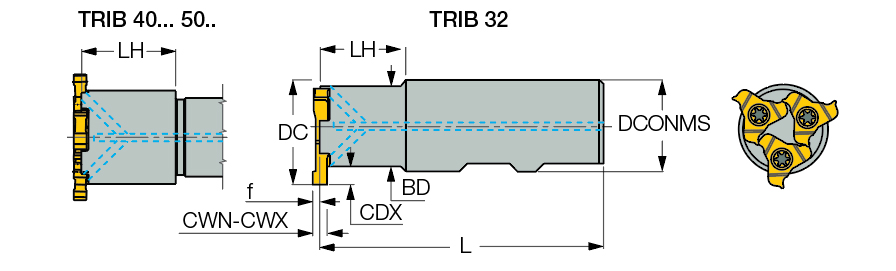

TRIB 40-25W-4Z
| Cutting Diameter (DC) | 40 mm | Cutting Length | 30 mm |
| Cutting Width Maximum (CWX) | 4 mm | Cutting Length Max. | 0.217″ |
| Cutting Depth Maximum (CDX) | 4.8 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Item Count (CICT) | 4 |
| Overall Length (OAL) | 110 mm | Functional Length (LF) | 80.43 mm |
| Shank Type | Weldon | Master Insert Identification (MIID) | TRI 16RK-4.0-0.2 |
| Coolant Supply Property (CSP) | Through Hole | Connection Code Machine Side (CCMS) | Weldon |
| Application | | Bottom Shouldering | Internal Groove Milling | Shouldering | Side Slotting | | Neck Diameter (DN) | 29.7 mm |
| Cutting Length Min. | 0.197″ |
Product Features

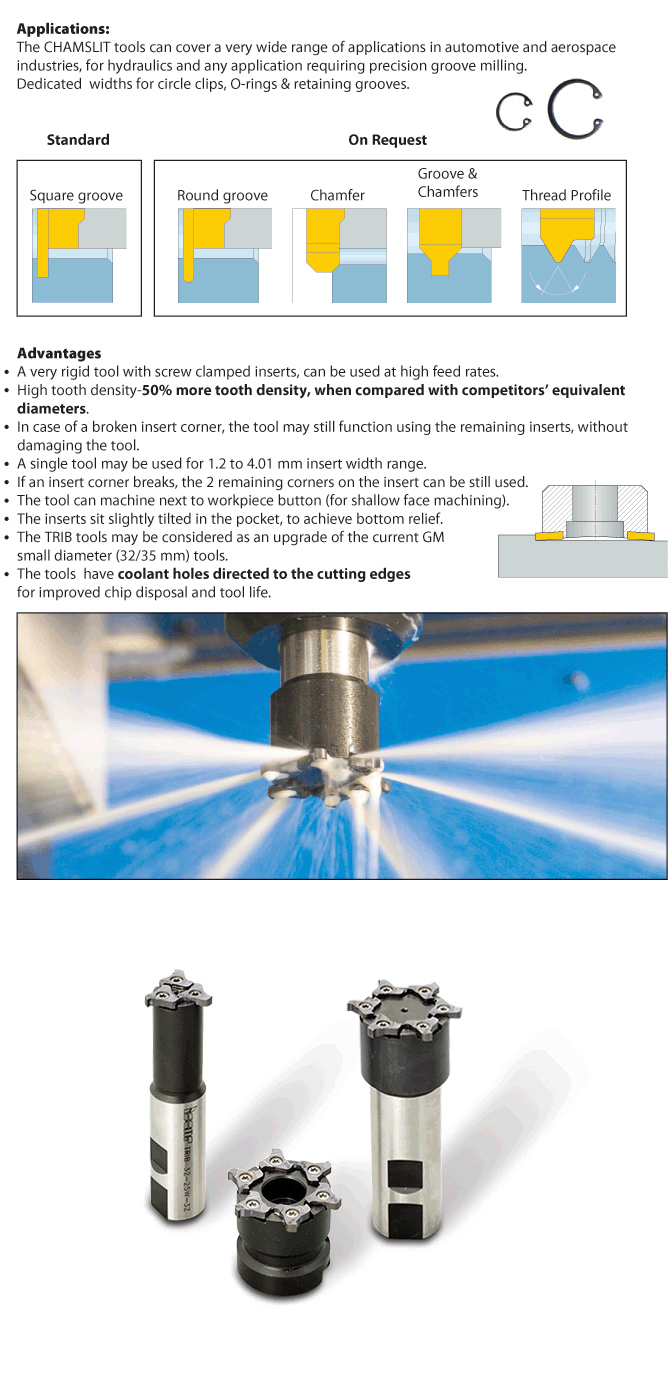

| Family Description | Slitting shanks carrying triple-edged precision ground inserts. | Country of Origin | Israel |
| Remarks | W, Tmax, f, Refer to insert data For inserts with W=4.01-6.50 mm, order tools with -B suffix (deeper pockets). For example: TRIB 50-32W-6Z-B For adaptation click on More Info. |
Shipping Info
Package Weight
1.204
