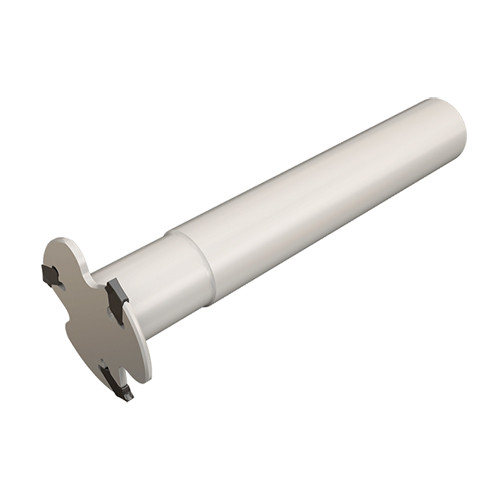

SGSF 40-2-W16

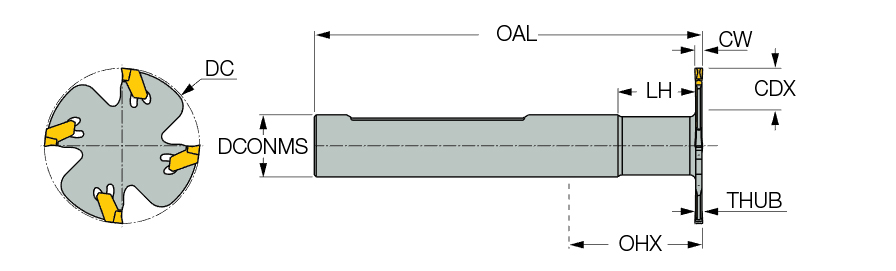

| Cutting Diameter (DC) | 40 mm | Application | | Side Slotting | Slitting | Slotting | T Slotting | |
| Cutting Width Minimum (CWN) | 1.8 mm | Cutting Length Min. | 0.197″ |
| Cutting Width Maximum (CWX) | 2.69 mm | Cutting Length Max. | 0.217″ |
| Cutting Depth Maximum (CDX) | 11 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Tool Type | Slitting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Item Count (CICT) | 4 |
| Overall Length (OAL) | 100 mm | Functional Length (LF) | 76 mm |
| Shank Type | Weldon | Master Insert Identification (MIID) | GSFN 2 |
| Coolant Supply Property (CSP) | Through Hole | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Grooving and slitting cutters with integral weldon shanks. | Country of Origin | Israel |
Shipping Info
Package Weight
0.456
