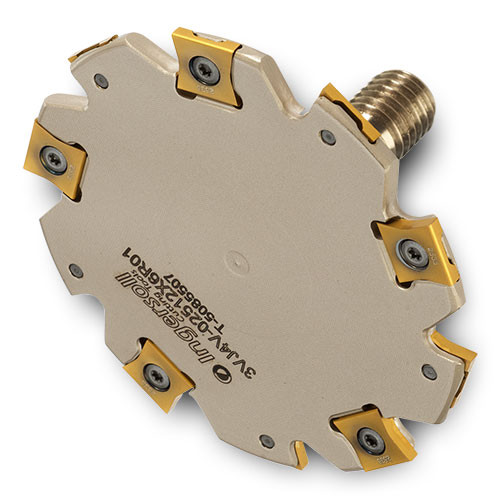

3VJ4V-02525X6R01
| Cutting Diameter (DC) | 2-1/2″ | Application | | Slotting | |
| Cutting Width (CW) | 1/4″ | Cutting Length Min. | 0.197″ |
| Cutting Depth Maximum (CDX) | 0.816″ | Cutting Length Max. | 0.217″ |
| Flute Count (NOF) | 8 | Measurement Type | Inch |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 Teeth | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.7″ | Cutting Item Count (CICT) | 8 |
| Usable Length (LU) | 1.4″ | Master Insert Identification (MIID) | LNET 083004-TN-N |
| Coolant Supply Property (CSP) | Through Hole | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0
