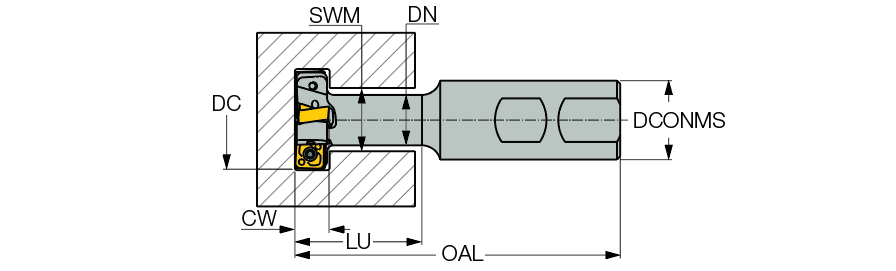

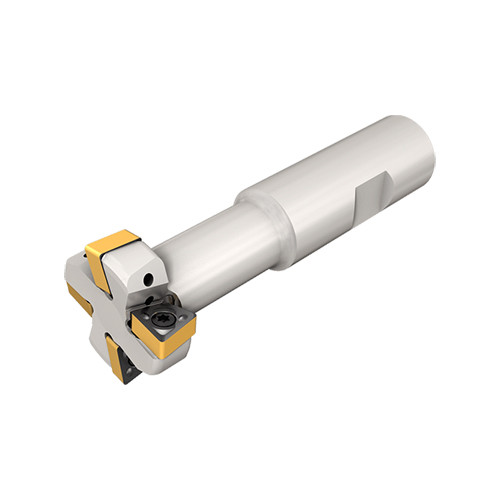

ETS D1.25-0.48-W0.75-XN09
| Cutting Diameter (DC) | 1-1/4″ | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Width (CW) | 0.476″ | Cutting Length Min. | 0.197″ |
| Cutting Depth Maximum (CDX) | 0.287″ | Cutting Length Max. | 0.217″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | Double-sided slotting cutters |
| Overall Length (OAL) | 3-3/4″ | Body Material | Steel |
| Usable Length (LU) | 1-1/2″ | Cutting Item Count (CICT) | 4 |
| Shank Type | Weldon | Master Insert Identification (MIID) | XNMU 0904... |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | T-SLOT endmills carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.534
