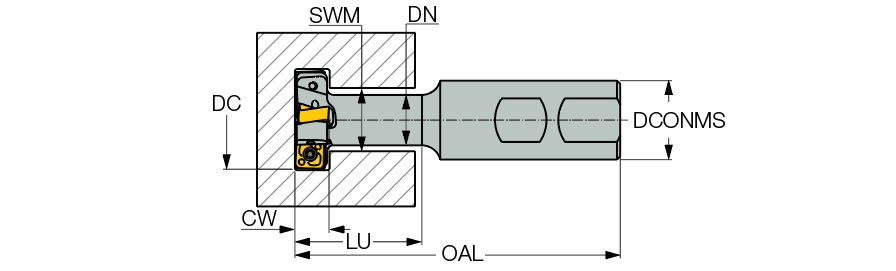

ETS D32-10-W16-XN09
| Cutting Diameter (DC) | 31.7 mm | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Width (CW) | 9.9 mm | Cutting Length Min. | 0.197″ |
| Cutting Depth Maximum (CDX) | 7 mm | Cutting Length Max. | 0.217″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Tool Type | Double-sided slotting cutters |
| Overall Length (OAL) | 85 mm | Body Material | Steel |
| Usable Length (LU) | 35 mm | Cutting Item Count (CICT) | 4 |
| Shank Type | Weldon | Master Insert Identification (MIID) | XNMU 0904... |
| Coolant Supply Property (CSP) | Through Hole | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | T-SLOT endmills carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.417
