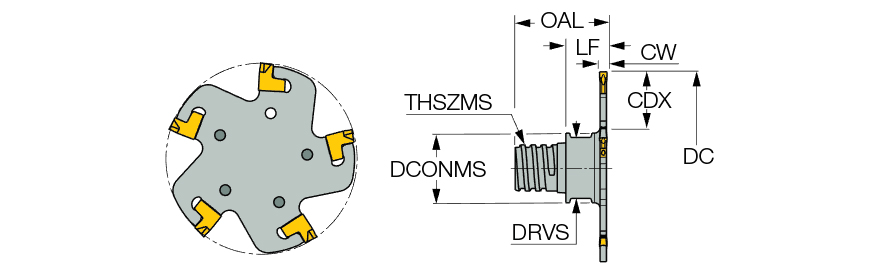

| Cutting Diameter (DC) | 1.968″ | Cutting Length Max. | 0.217″ |
| Cutting Width (CW) | 0.079″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.551″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.748″ | Cutting Item Count (CICT) | 5 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Functional Length (LF) | 0.421″ |
| Overall Length (OAL) | 0.945″ | Master Insert Identification (MIID) | TAG N2 |
| Coolant Supply Property (CSP) | Through Hole | Drive Size (DRVS) | 0.63″ |
| Application | | Side Slotting | Slitting | T Slotting | | Connection Code Machine Side (CCMS) | MultiMaster |
| Cutting Length Min. | 0.197″ |
Product Features

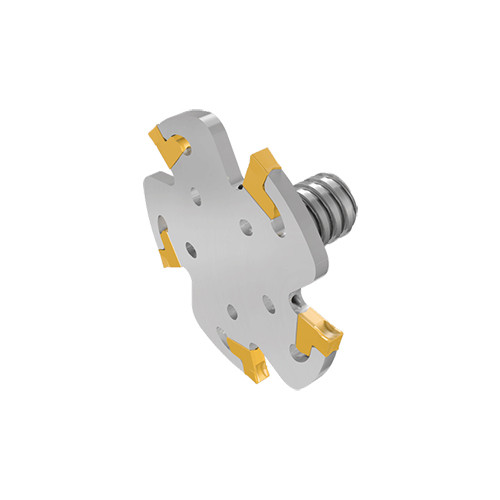

| Family Description | Grooving and slitting small diameter cutters with MULTI-MASTER threaded adaptor, that mount TANG-GRIP inserts. | Country of Origin | Israel |
| Remarks | For best performance use internal coolant with CH type shanks DC varies slightly due to different chip formers having different lengths For precision operations it is recommended to verify diameter offset before machining For adaptation, click on More Info |
Shipping Info
Package Weight
0.118
