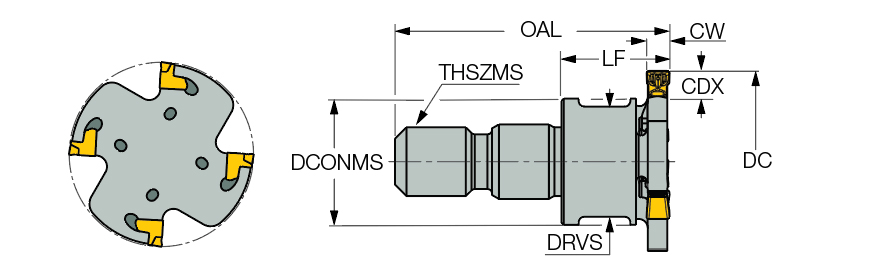

| Cutting Diameter (DC) | 1.968″ | Cutting Length Max. | 0.217″ |
| Cutting Width (CW) | 0.079″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.512″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.827″ | Cutting Item Count (CICT) | 5 |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12 | Functional Length (LF) | 0.425″ |
| Overall Length (OAL) | 0.945″ | Master Insert Identification (MIID) | TAG 2 |
| Coolant Supply Property (CSP) | Through Hole | Drive Size (DRVS) | 0.669″ |
| Application | | Side Slotting | Slitting | T Slotting | | Connection Code Machine Side (CCMS) | FLEXFIT |
| Cutting Length Min. | 0.197″ |
Product Features

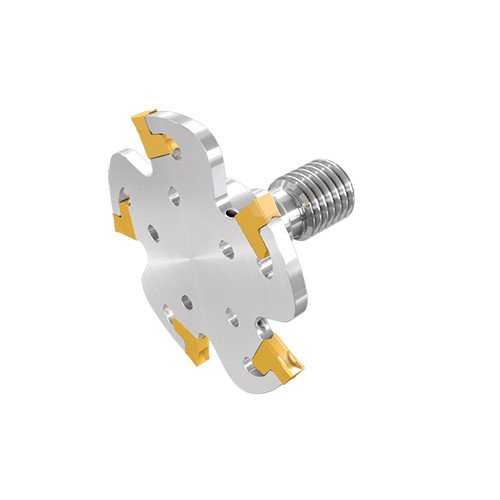

| Family Description | Grooving and slitting small diameter cutters with FLEXFIT threaded adaptation, carrying TANG-GRIP inserts. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For best performance use internal coolant with CH shanks DC varies slightly due todifferent chipformers having different lengths For precision operations it is recommended to verify diameter offset before machining For adaptation, click on More Info |
Shipping Info
Package Weight
0.143
