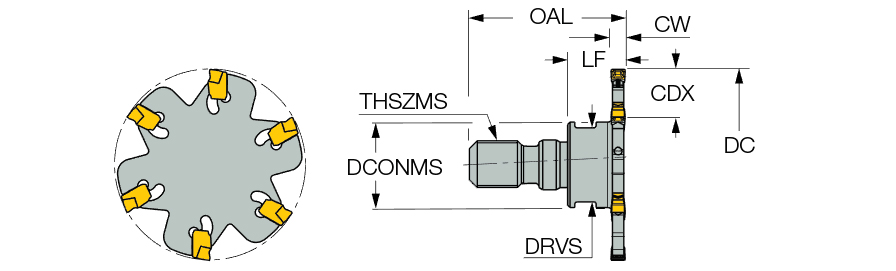

| Cutting Diameter (DC) | 1.575″ | Cutting Length Max. | 0.217″ |
| Cutting Width (CW) | 0.079″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.394″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Cutting Item Count (CICT) | 4 |
| Connection Thread Nominal Size Machine Side (THSZMS) | M10 | Functional Length (LF) | 0.433″ |
| Overall Length (OAL) | 1.161″ | Master Insert Identification (MIID) | GSFN 2... |
| Coolant Supply Property (CSP) | Through Hole | Drive Size (DRVS) | 0.591″ |
| Application | | Side Slotting | Slitting | T Slotting | | Connection Code Machine Side (CCMS) | FLEXFIT |
| Cutting Length Min. | 0.197″ |
Product Features

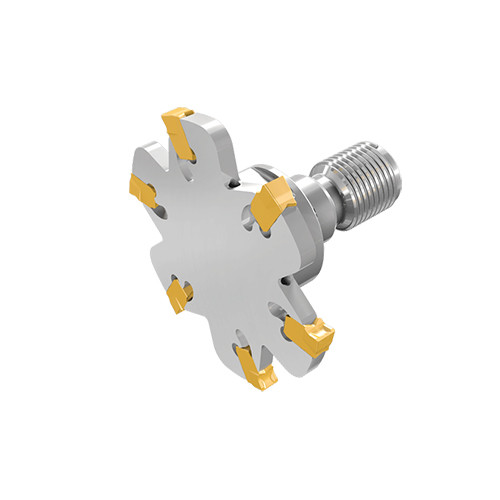

| Family Description | Grooving and slitting small diameter cutters with FLEXFIT threaded adaptation, carrying SELF-GRIP GSFN inserts. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For best performance use internal coolant with CH type shanks For adaptation, click on More Info |
Shipping Info
Package Weight
0.110
