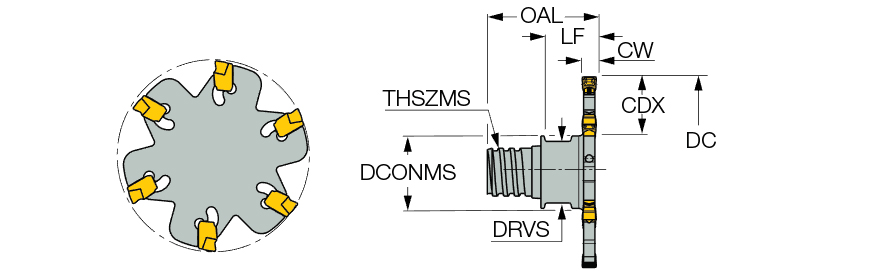

| Cutting Diameter (DC) | 1.575″ | Cutting Length Max. | 0.217″ |
| Cutting Width (CW) | 0.118″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.445″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.602″ | Cutting Item Count (CICT) | 6 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Functional Length (LF) | 0.449″ |
| Overall Length (OAL) | 0.894″ | Master Insert Identification (MIID) | GSAN 3... |
| Coolant Supply Property (CSP) | Through Hole | Drive Size (DRVS) | 0.512″ |
| Application | | Side Slotting | Slitting | T Slotting | | Connection Code Machine Side (CCMS) | MultiMaster |
| Cutting Length Min. | 0.197″ |
Product Features

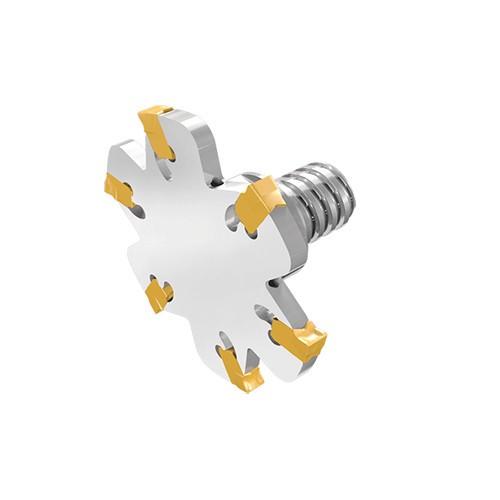

| Family Description | Grooving and slitting small diameter cutters with the MULTI-MASTER threaded adaptor, carrying SELF-GRIP GSFN inserts. | Country of Origin | Israel |
| Remarks | For best performance use internal coolant with CH type shanks For adaptation, click on More Info |
Shipping Info
Package Weight
0.108
