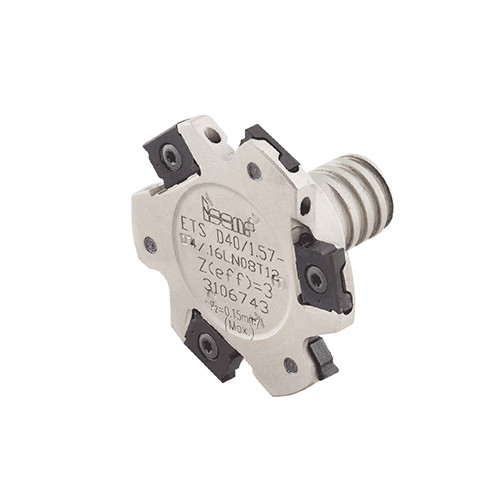

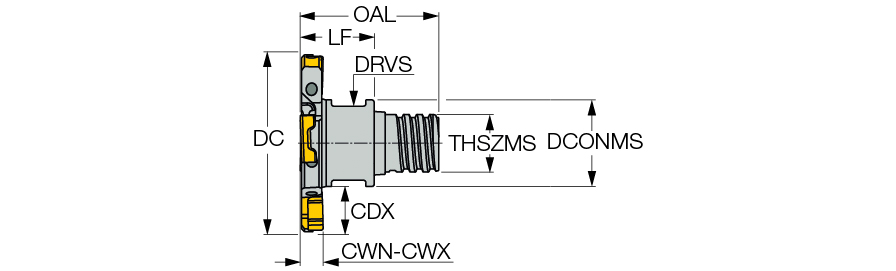

ETS D40/1.57-4-LN08-MMT12
| Cutting Diameter (DC) | 1.575″ | Cutting Length Max. | 0.177″ |
| Cutting Depth Maximum (CDX) | 0.409″ | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.717″ | Cutting Item Count (CICT) | 6 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Functional Length (LF) | 0.512″ |
| Overall Length (OAL) | 1.035″ | Master Insert Identification (MIID) | LNET 082604-TN-N |
| Coolant Supply Property (CSP) | Through Hole | Drive Size (DRVS) | 0.63″ |
| Application | | Side Slotting | Slitting | T Slotting | | Connection Code Machine Side (CCMS) | MultiMaster |
| Cutting Length Min. | 0.157″ |
Product Features
| Family Description | Grooving and slitting cutters with MULTI-MASTER threaded adaptor, that mount tangentially clamped inserts with 4 cutting edges. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
0.105
