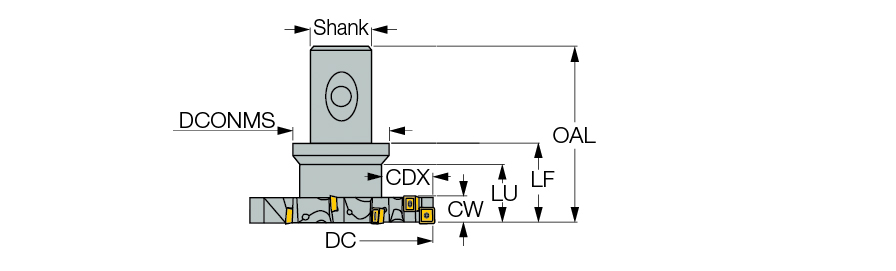

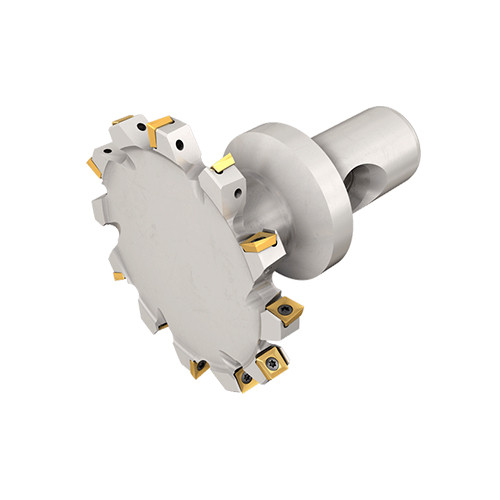

FDN D3.0-0.31-CF4-06
| Cutting Diameter (DC) | 3″ | Cutting Length Min. | 0.197″ |
| Cutting Depth Maximum (CDX) | 1″ | Cutting Length | 0.31″ |
| Flute Count (NOF) | 12 | Cutting Length Max. | 0.217″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.73″ | Tool Type | Double-sided slotting cutters |
| Overall Length (OAL) | 3.37″ | Body Material | Steel |
| Usable Length (LU) | 1.15″ | Cutting Item Count (CICT) | 12 |
| Shank Type | CLICKFIT | Functional Length (LF) | 1.71″ |
| Coolant Supply Property (CSP) | Through Hole | Master Insert Identification (MIID) | XOMT 060204-HQ |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Connection Code Machine Side (CCMS) | CLICKFIT |
Product Features
| Family Description | HELIQUAD, Full slot flange-type slotting cutters with CLICKFIT adaptation. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.640
