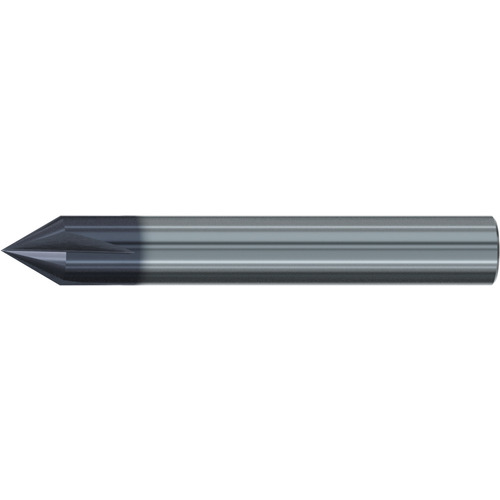

1/4 CHAMF MILL 60D TIALN
Chamfer Mill; 1/4″ Dia. × 3″ OAL × 1/4″ Shank Dia. ; 4 FL ; 60 Degrees ; Carbide ; AlTiN ; Sub-Micro Grain ; Series 1715A
| Applicable Material | | Universal Materials | | Coating | AlTiN |
| Application | | Finishing | | Grade | Sub-Micro Grain |
| Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Decimal Equivalent | 0.25″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Tool Type | Chamfer Mill |
| Flute Helix Angle (FHA) | 0 Degrees | Measurement Type | Inch |
| Overall Length (OAL) | 3″ | Series/List # | 1715A |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Shank Size | 1/4″ |
| Point Angle (SIG) | 60 Degrees | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide | Single / Double End | Single End |
Product Features
| Remarks | • Carbide chamfering end mill for chamfering edges and slots in almost all materials • 60° taper angle • Solid sub-micro grain carbide • Longer tool life with increased performance. | Country of Origin | USA |
Shipping Info
Package Weight
0.059
