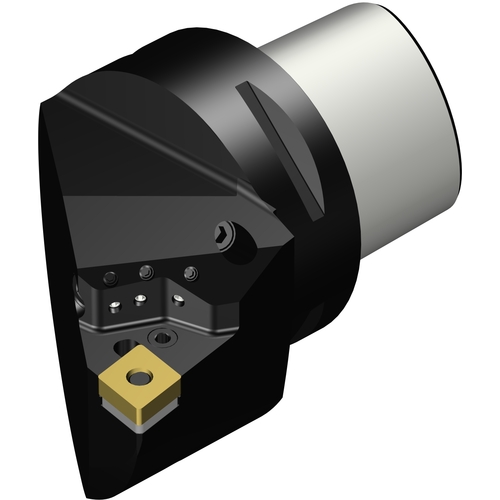

C10-PCLNR-68110-19HP CAPTO HP CUTTING UNIT
Turning Toolholder; 170 mm OAL x #10 Shank Dia. × 110 mm LH ; Right Hand ; Steel
Additional Tariff Surcharge of 8 %
| Protruding Length (LPR) | 110 mm | Master Insert Identification (MIID) | CNMG |
| Overall Length (OAL) | 170 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Head Length (LH) | 110 mm | Shank Type | Capto |
| Connection Diameter Machine Side (DCONMS) | #10 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 315 mm | Style | C10-PCLNR-68110-19HP |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
13.448
