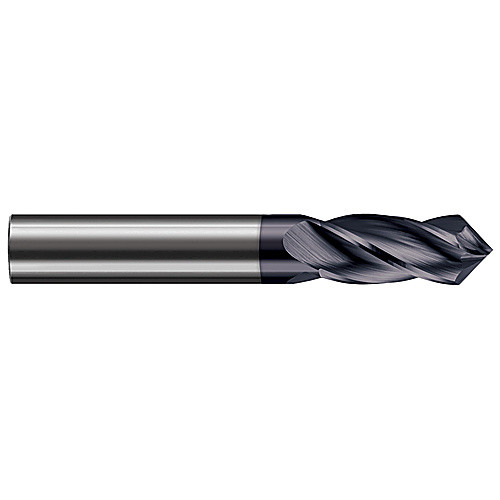

899206-C6 DRILL/MILL-NANO
Chamfer Mill; 3/32″ Dia. × 3/8″ LU × 3/8″ LOC × 1-1/2″ OAL × 1/8″ Shank Dia. ; 4 FL ; 60 Degrees ; Carbide ; AlTiN ; Series Specialty Profiles
| Cutting Diameter (DC) | 3/32″ | Coating | AlTiN |
| Decimal Equivalent | 0.0938″ | Shank Type | Round |
| Usable Length (LU) | 3/8″ | End Shape | Mill Style |
| Flute Count (NOF) | 4 | Length Group | 4D |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 3/8″ | Series/List # | Specialty Profiles |
| Overall Length (OAL) | 1-1/2″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 60 Degrees | Single / Double End | Single End |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
