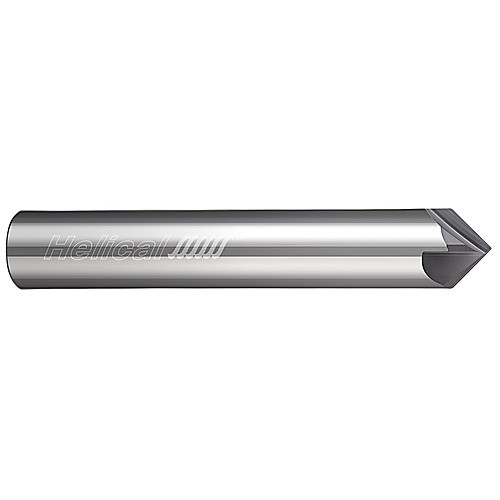

0.3125″ (5/16) Shank DIA × 90 Degree Included Angle - 4 Flute - Uncoated
Chamfer Mill; 5/16″ Dia. × 0.156″ LU × 0.156″ LOC × 2-1/2″ OAL × 5/16″ Shank Dia. ; 4 FL ; 90 Degrees ; Carbide ; Uncoated
| Applicable Material | | General Purpose | | Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Cutting Diameter (DC) | 5/16″ | Point Angle (SIG) | 90 Degrees |
| Decimal Equivalent | 0.3125″ | Cutting Edge Material | Carbide |
| Usable Length (LU) | 0.156″ | Coating | Uncoated |
| Flute Count (NOF) | 4 | End Shape | Pointed |
| Depth of Cut Maximum (APMX) | 0.156″ | Tool Type | Chamfer Mill |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
