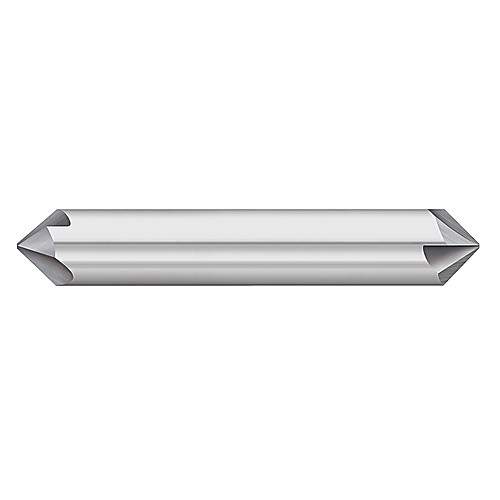

862 3/16 DE 4F CHMF-60D
Chamfer Mill; 3/16″ Dia. × 0.137″ LU × 0.137″ LOC × 2-1/2″ OAL × 3/16″ Shank Dia. ; 4 FL ; 60 Degrees ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/16″ | Point Angle (SIG) | 60 Degrees |
| Decimal Equivalent | 0.1875″ | Cutting Edge Material | Carbide |
| Usable Length (LU) | 0.137″ | Coating | Uncoated |
| Flute Count (NOF) | 4 | End Shape | Flat |
| Depth of Cut Maximum (APMX) | 0.137″ | Tool Type | Chamfer Mill |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Single / Double End | Double End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.030
