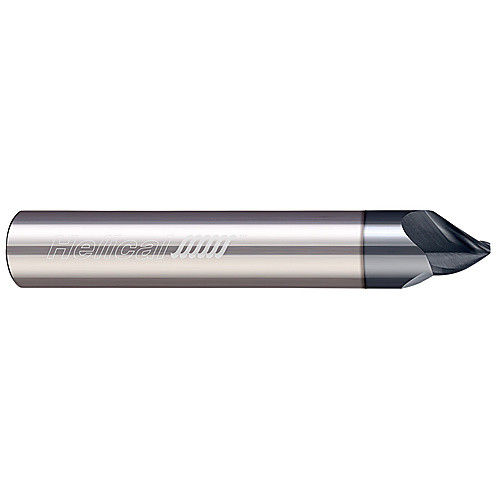

HPCM60-30125_
Chamfer Mill; 1/8″ Dia. × 0.074″ LU × 0.074″ LOC × 1-1/2″ OAL × 1/8″ Shank Dia. ; 3 FL ; 60 Degrees ; Carbide ; AlTiN
| Applicable Material | | General Purpose | | Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Cutting Diameter (DC) | 1/8″ | Point Angle (SIG) | 60 Degrees |
| Decimal Equivalent | 0.125″ | Cutting Edge Material | Carbide |
| Usable Length (LU) | 0.074″ | Coating | AlTiN |
| Flute Count (NOF) | 3 | End Shape | Tipped Off |
| Depth of Cut Maximum (APMX) | 0.074″ | Tool Type | Chamfer Mill |
| Overall Length (OAL) | 1-1/2″ | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.001
