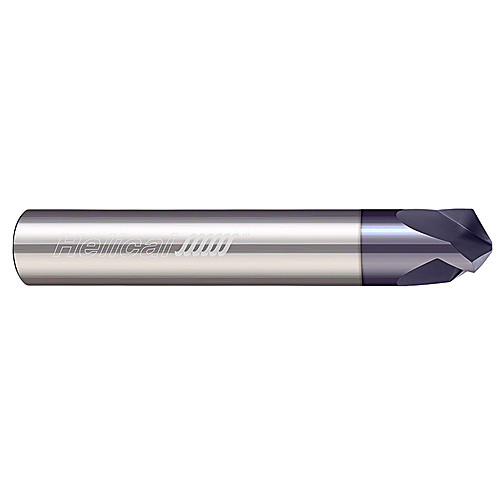

0.1875″ (3/16) Shank DIA × 120 Degree Included Angle - 3 Helical FL - APLUS Coated
Chamfer Mill; 3/16″ Dia. × 0.04″ LU × 0.04″ LOC × 2″ OAL × 3/16″ Shank Dia. ; 3 FL ; 120 Degrees ; Carbide ; AlTiN
| Applicable Material | | General Purpose | | Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Cutting Diameter (DC) | 3/16″ | Point Angle (SIG) | 120 Degrees |
| Decimal Equivalent | 0.1875″ | Cutting Edge Material | Carbide |
| Usable Length (LU) | 0.04″ | Coating | AlTiN |
| Flute Count (NOF) | 3 | End Shape | Tipped Off |
| Depth of Cut Maximum (APMX) | 0.04″ | Tool Type | Chamfer Mill |
| Overall Length (OAL) | 2″ | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.050
