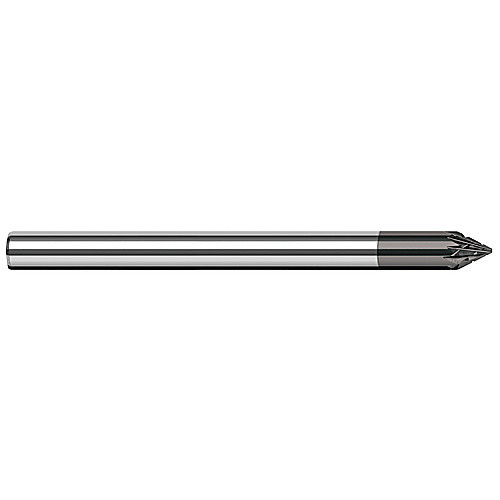

0.3750″ (3/8) Shank DIA × 45 Degree per side - 14 RH Teeth, 7 LH Teeth - Amorphous Diamond Coated Chamfer Cutters - Deburring Chamfer Cutters
Chamfer Mill; 3/8″ Dia. × 0.181″ LU × 0.181″ LOC × 2-1/2″ OAL × 3/8″ Shank Dia. ; 14 FL ; 90 Degrees ; Carbide ; DLC ; Series Specialty Profiles
| Cutting Diameter (DC) | 3/8″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.375″ | Coating | DLC |
| Usable Length (LU) | 0.181″ | Shank Type | Round |
| Flute Count (NOF) | 14 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 90 Degrees | Series/List # | Specialty Profiles |
| Depth of Cut Maximum (APMX) | 0.181″ | Body Material | Carbide |
| Overall Length (OAL) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Single / Double End | Single End |
| Point Angle (SIG) | 90 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.5
