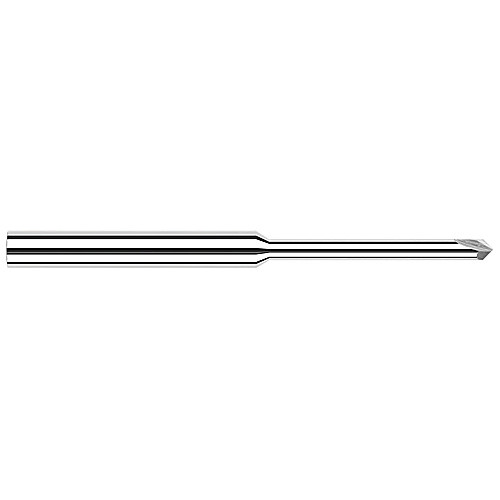

0.0780″ (5/64) Neck DIA × 0.8000″ Reach × 45 Degree per side - 2 Flute Chamfer Cutters - Pointed - Long Reach
Chamfer Mill; 5/64″ Dia. × 0.8″ LU × 0.039″ LOC × 2-1/2″ OAL × 1/8″ Shank Dia. ; 2 FL ; 90 Degrees ; Carbide ; Uncoated ; Series Specialty Profiles
| Cutting Diameter (DC) | 5/64″ | Coating | Uncoated |
| Decimal Equivalent | 0.0781″ | Shank Type | Round |
| Usable Length (LU) | 0.8″ | End Shape | Pointed |
| Flute Count (NOF) | 2 | Length Group | 10D |
| Flute Helix Angle (FHA) | 90 Degrees | Neck Length (LN) | 0.761″ |
| Depth of Cut Maximum (APMX) | 0.039″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Series/List # | Specialty Profiles |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Body Material | Carbide |
| Point Angle (SIG) | 90 Degrees | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
