.500X.020 CHMF STD EM 4FL

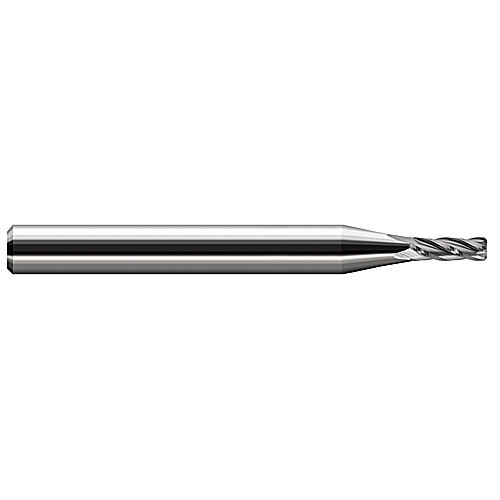

Corner Chamfer End Mill; 1/2″ Dia. × 1-1/2″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/2″ | Usable Length (LU) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Chamfer Width (CHW) | 0.02″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Length Group | 3D |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/2″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Chamfer | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.100
