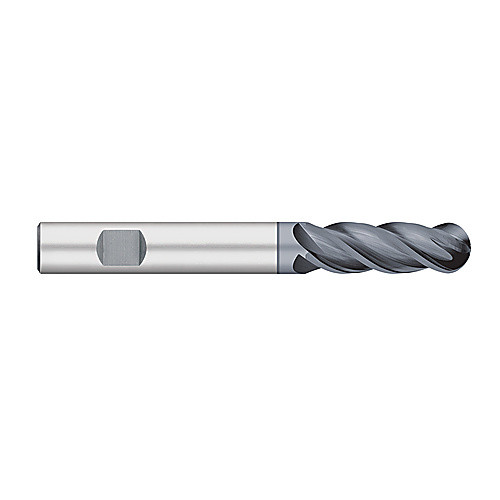

V42LB 5/8 4F BNVI W/FLAT
BN End Mill; 5/8″ Dia. × 2-1/4″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 4 FL ; Carbide ; AlTiCrN
| Cutting Diameter (DC) | 5/8″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 2-1/4″ |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Corner Radius (RE) | 5/16″ |
| Overall Length (OAL) | 5″ | Tool Type | Ballnose Endmill |
| Cutting Edge Material | Carbide | End Shape | Ball |
| Coating | AlTiCrN | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.713
