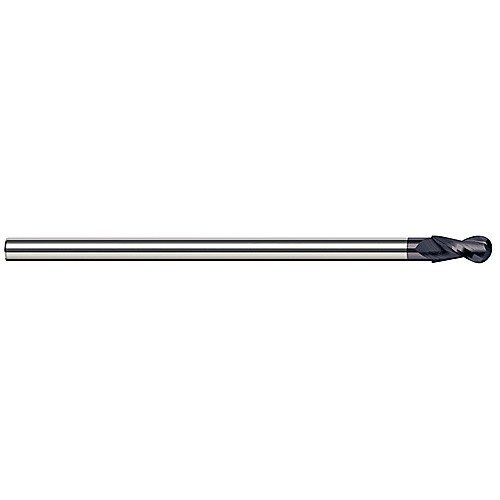

Ballnose End Mill; 3/16″ Dia. × 9/32″ LOC × 5/32″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiAlN
BN End Mill; 3/16″ Dia. × 9/32″ LOC × 5/32″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 3/16″ | Usable Length (LU) | 9/32″ |
| Connection Diameter Machine Side (DCONMS) | 5/32″ | Corner Radius (RE) | 3/32″ |
| Depth of Cut Maximum (APMX) | 9/32″ | Length Group | 1.5D |
| Overall Length (OAL) | 2-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1875″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees | Single / Double End | Single End |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
