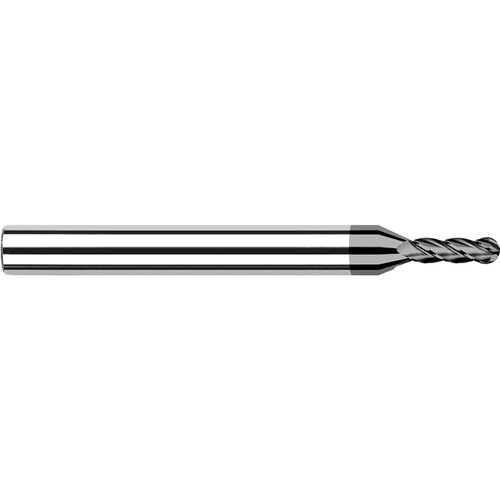

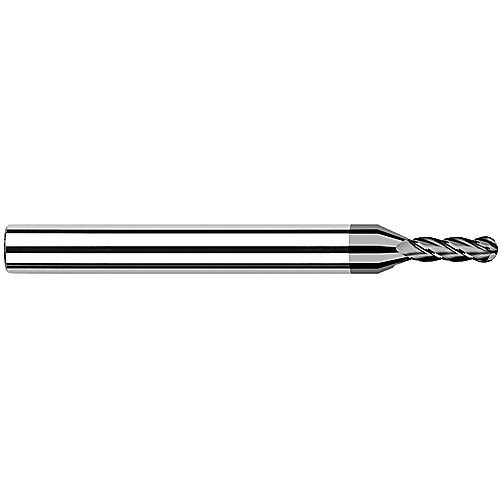

Ballnose End Mill; 0.02″ Dia. × 0.06″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; CVD
BN End Mill; 0.02″ Dia. × 0.06″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; CVDDIA
| Cutting Diameter (DC) | 0.02″ | Usable Length (LU) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 0.06″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 1-1/2″ | Length Group | 3D |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | CVDDIA | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
