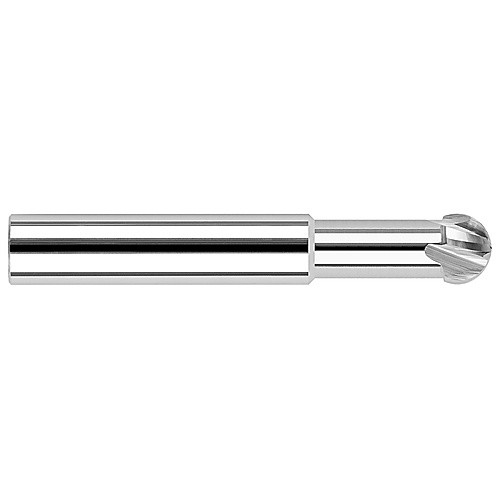

Ballnose End Mill; 1/16″ Dia. × 0.042″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; Uncoated
BN End Mill; 1/16″ Dia. × 0.042″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/16″ | Usable Length (LU) | 0.167″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.031″ |
| Depth of Cut Maximum (APMX) | 0.042″ | End Shape | Ball Nose |
| Overall Length (OAL) | 1-1/2″ | Decimal Equivalent | 0.0625″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Single / Double End | Single End |
| Flute Helix Angle (FHA) | 30 Degrees | Tool Cutting Edge Angle (KAPR) | 220 Degrees |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
