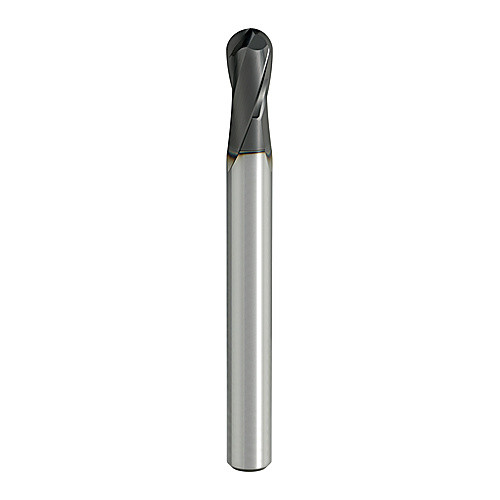

VFR2SBR0125S06
BN End Mill; 2.5 mm Dia. × 2.5 mm LOC × 6 mm Shank Dia. × 60 mm OAL ; 2 FL ; AlTiCrSiN ; Series VFR2SB
| Cutting Diameter (DC) | 2.5 mm | Corner Radius (RE) | 1.25 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Neck Diameter (DN) | 2.4 mm |
| Depth of Cut Maximum (APMX) | 2.5 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 60 mm | Length Group | Short |
| Coating | AlTiCrSiN | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 20 Degrees | Series/List # | VFR2SB |
| Usable Length (LU) | 5 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.990
