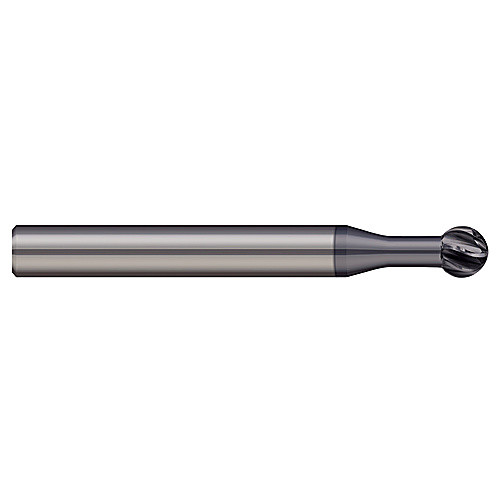

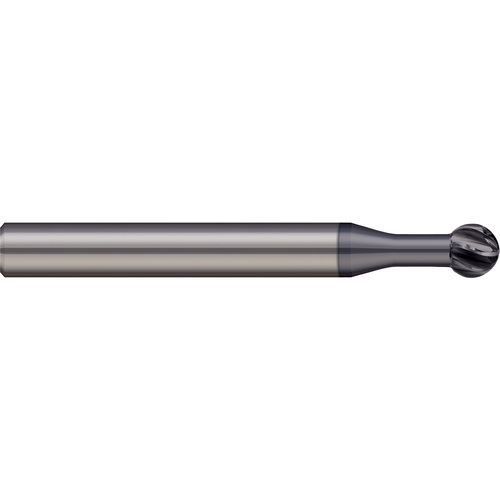

Ballnose End Mill; 3/32″ Dia. × 0.08″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; TiAlN Nano
BN End Mill; 3/32″ Dia. × 0.08″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 3/32″ | Usable Length (LU) | 0.142″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 3/64″ |
| Depth of Cut Maximum (APMX) | 0.08″ | End Shape | Ball Nose |
| Overall Length (OAL) | 1-1/2″ | Decimal Equivalent | 0.0938″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Center Cutting | No |
| Flute Helix Angle (FHA) | 20 Degrees | Single / Double End | Single End |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 270 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
