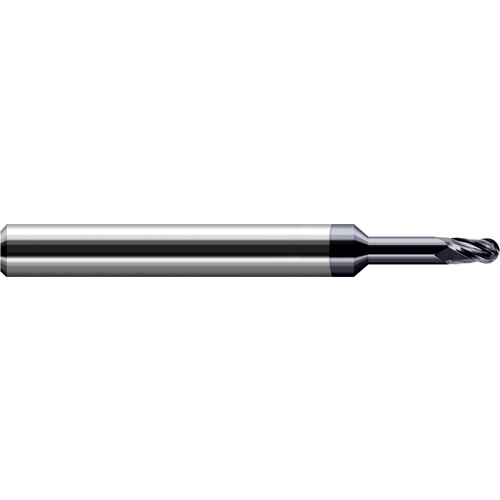

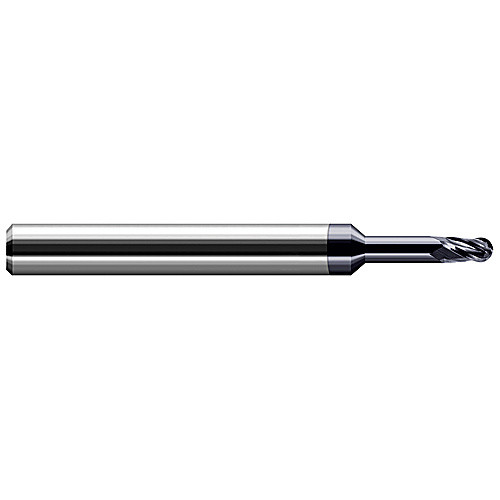

Ballnose End Mill; 3/8″ Dia. × 0.57″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; TiAlN Nano
BN End Mill; 3/8″ Dia. × 0.57″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 3/8″ | Usable Length (LU) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 0.57″ | Corner Radius (RE) | 3/16″ |
| Overall Length (OAL) | 4″ | Length Group | 5D |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | TiAlN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 34 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.2
