EBAI-B3 1.-1.5/4.C-6EC IC1508

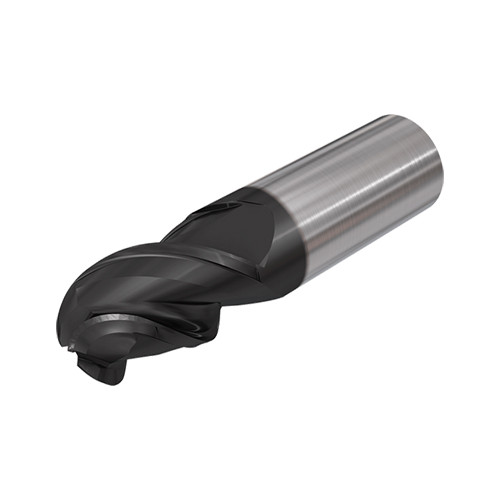

BN End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 6″ OAL ; 3 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 1″ | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 1/2″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Neck Diameter (DN) | 0.965″ |
| Overall Length (OAL) | 6″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Grade | IC1508 |
| Coating | DLC | Tool Type | Solid ball nose |
| Flute Count (NOF) | 3 | End Shape | Square |
| Shank Type | Round | Body Material | Carbide |
| Usable Length (LU) | 4″ | Decimal Equivalent | 1″ |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
Product Features
| Family Description | DLC coated 3 flute ball nose mills for machining Aluminum and other non-ferrous materials. | Country of Origin | USA |
Shipping Info
Package Weight
0.999
