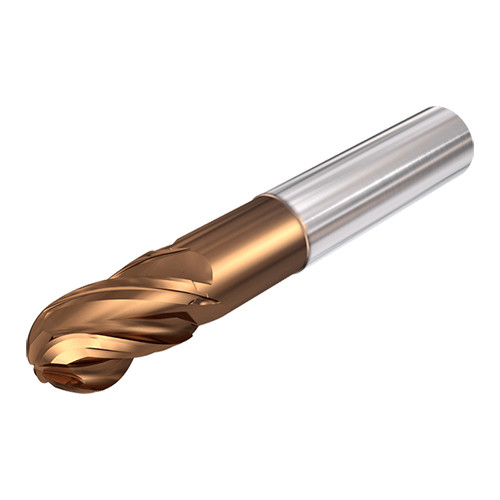

EBI-4 750-1.25/2.0WVF4 IC608
BN End Mill; 3/4″ Dia. × 1-1/4″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; AlTiCrSiN

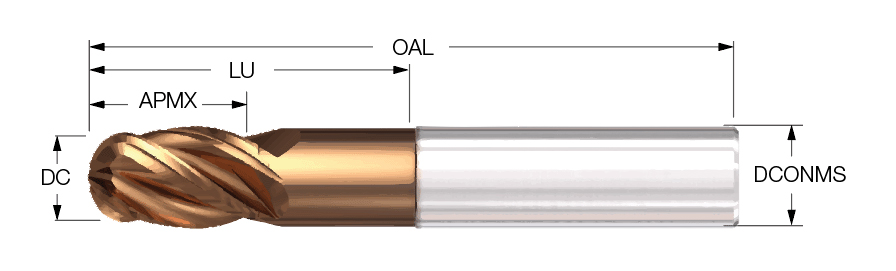

| Cutting Diameter (DC) | 3/4″ | Corner Radius (RE) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Neck Diameter (DN) | 0.72″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 4″ | Grade | IC608 |
| Cutting Edge Material | Carbide | Tool Type | Solid ball nose |
| Coating | AlTiCrSiN | End Shape | Square |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| Usable Length (LU) | 2″ | Decimal Equivalent | 0.75″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | 4 flute ball nose endmills with and without relieved necks | Country of Origin | USA |
| Remarks | Each item is also available with a Weldon shank. Substitute a W in place of the C in the listed designations (example: EBI-4 375-1.0CVF2.5 = cylindrical type; ECI-4 375-1.0WVF2.5 = Weldon type) |
Shipping Info
Package Weight
0.999
