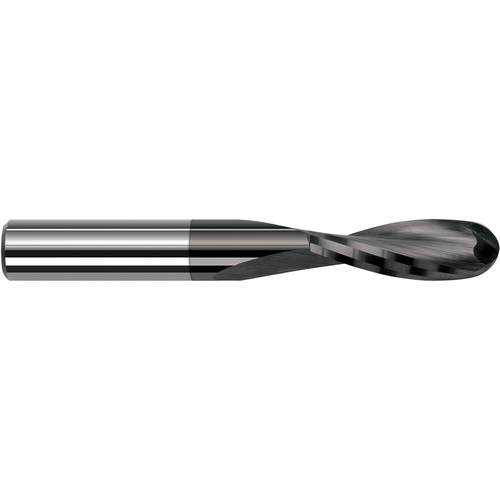

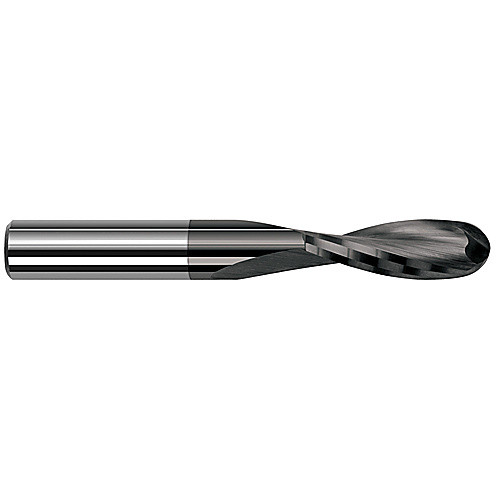

Ballnose End Mill; 1/32″ Dia. × 5/32″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; Amorphous Diamond
BN End Mill; 1/32″ Dia. × 5/32″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 1/32″ | Usable Length (LU) | 5/32″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Other Non-Metallic Materials | |
| Depth of Cut Maximum (APMX) | 5/32″ | Corner Radius (RE) | 1/64″ |
| Overall Length (OAL) | 1-1/2″ | Length Group | 5D |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | DLC | Decimal Equivalent | 0.0313″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 20 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
