1/2-4FL-DE-STUB BN

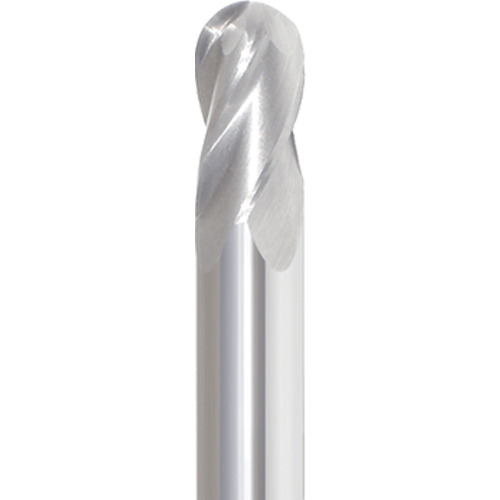

BN End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 242
| Cutting Diameter (DC) | 1/2″ | Application | Profiling | Ramping | Profile Cutting | Radiusing | Radius Slotting |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Grade | C-2 Sub-Micron |
| Depth of Cut Maximum (APMX) | 5/8″ | Length Group | Stub |
| Overall Length (OAL) | 3″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | Uncoated | Series/List # | 242 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Single / Double End | Double End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.23
