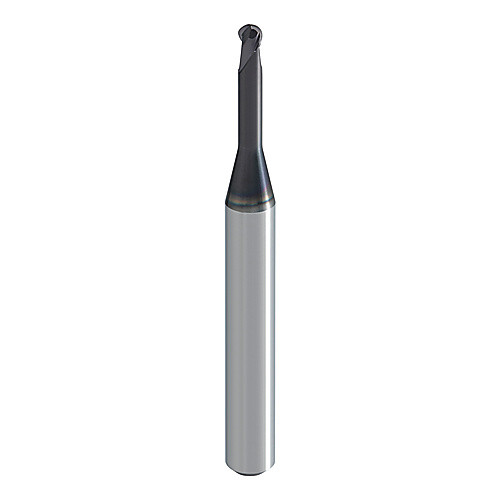

MP2XLBR0150N140
BN End Mill; 3 mm Dia. × 2.3 mm LOC × 6 mm Shank Dia. × 60 mm OAL ; 2 FL ; AlTiSiN ; Series MP2XLB
| Cutting Diameter (DC) | 3 mm | Corner Radius (RE) | 1.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Neck Diameter (DN) | 2.9 mm |
| Depth of Cut Maximum (APMX) | 2.3 mm | Body Half Taper Angle (BHTA) | 12 Degrees |
| Overall Length (OAL) | 60 mm | Length Group | Long - Necked |
| Coating | AlTiSiN | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | MP2XLB |
| Usable Length (LU) | 14 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.990
