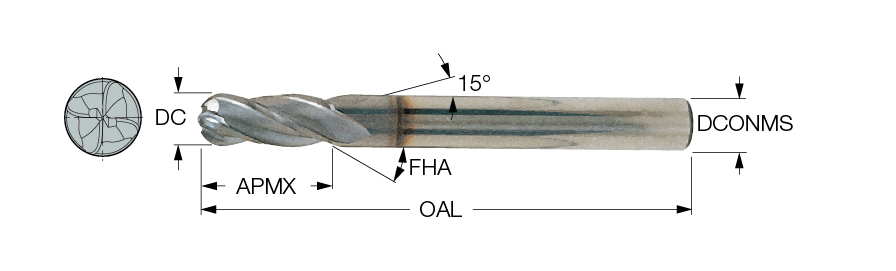

EB030A08-4C04 IC902
BN End Mill; 3 mm Dia. × 8 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 3 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 1.5 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Grade | IC902 |
| Overall Length (OAL) | 50 mm | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | End Shape | Square |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
Product Features
| Family Description | 4 flute, 30° helix medium length solid carbide ball nose endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
0.044
